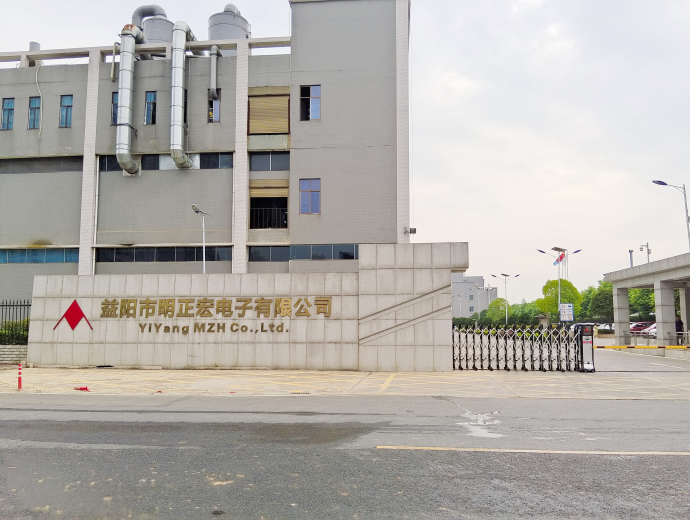

About company
Bring you flexible and diverse PCB solutions
MZH Electronics was established in Shenzhen in 2003. After years of accumulation and with excellent cost and quality control, we have been recognized by more than 2,000 customers around the world.
Quick Support
With fast delivery and fast response services, including quotation, engineering and technical consultation, etc.
Business
The product range ranges from single-layer PCB to 24-layer PCB, aluminum PCB, thick copper PCB, gold finger PCB, etc.
Factory No. 1 in Yiyang, Hunan, has a monthly production capacity of 250,000 square meters, including 150,000 square meters of multi-layer PCB production capacity, such as 2L and 4L, and 100,000 square meters of 1L single-sided PCB production capacity.
The Shenzhen branch has a monthly production capacity of 120,000 square meters, specializing in ENIG, gold plating (thick gold, gold finger), NiPdAu PCB and other processes.
The Jiangmen branch has a monthly production capacity of 20,000 square meters, specializing in the production of immersion gold, gold-plated (thick gold, gold finger), and nickel-palladium PCBs.
MZH Electronics
We are your most satisfactory PCB service provider
01
Adequate production capacity
The strong production capacity brought by high automation enables us to handle different types of PCBs in different application industries.
LEARN MORE
02
Flexible Order Quantity
Streamlined and automated production processes enable us to produce small batches and large orders and ensure consistent quality and fast turnaround time.
LEARN MORE
03
Strict Quality Control
From material selection to final inspection, we maintain strict quality control at every stage of the manufacturing process. Follow ISO 9001, UL and other standards.
LEARN MORE
04
Responsive Delivery Service
We offer fast delivery and standard delivery options to meet different project timelines, and can provide quick-turn and normal delivery services.
LEARN MORE
+
PCB industry experience
Currently, MZH has two full PCB process factories and two immersion metal process factories, with annual sales exceeding RMB 1.2 billion.
+
Customer acceptance
With our excellent cost and quality control, we have gained recognition from more than 2,000 customers worldwide.
MZH Electronics
Why choose MZH Electronics
Global Customers
Received recognition from over 2000 customers worldwide
Ensure quality
Strictly control the production process, control product production, refine production steps.
Wide application range
Widely used in industries such as automobiles, telecommunications, industrial control, power supplies, computer accessories, etc
Technical patents
Technology and patents have always been the core elements of our company's development in the market.
Fast logistics
Flexible transportation, storage, and local transportation options worldwide.
Company Size
Multiple subsidiary companies in China, specifically responsible for different sectors and presenting better products for you
UI/UX Design
Build the product you need on time with an experienced team that uses a clear and effective design process.
Dedicated Team
Build the product you need on time with an experienced team that uses a clear and effective design process.
MZH Electronics
Cooperation Cases
Previous
Next
Application: High Speed SSD PCB
Layer Count: 10 Layer
Material: FR4 TG170
Board Thickness: 0.85mm +/-0.05mm
Min Trace 3/3mil
Min BGA 8mil
Min Hole 0.15mm
Surface Treatment Immersion Gold 2u’
Board Size 22mm*80mm
Panel Size 126mm*80mm/5pcs
Solder Mask Matte Black
Other Specs IG5216-2280 SSD
Interface: M.2 interface
Protocol: NVMe
Previous
Next
Application: Smart Ring
Layer Count: 4 Layer
Material: PI+FR4
Board Thickness: 0.35 MM
Min Trace: 3/3mil
Min BGA: 8.7mil
Min Hole: 0.1mm
Surface Treatment: Immersion Gold 2u’
Board Size: 72mm*6.5mm
Panel Size: 114.6mm*86mm/10pcs
Solder Mask: Matte Black
Blind Holes: L1-L2 0.1MM, L3-L4 0.1MM
Buried Holes: L2-L3 0.2MM
Previous
Next
Application: Power Supply
Layer Count: 16 Layer
Material: S1000-2M TG170
Board Thickness: 3.6MM
Min Trace: 12mil/12mil
Copper Thickness: Inner Layer 4 OZ, Out Layer 4 OZ
Min Hole: 0.4MM
Surface Treatment: Immersion Gold 2U’
Board Size: 58MM*37MM
Panel Size: 152MM*126MM/8PCS
Solder Mask: Green Solder Mask
High voltage: 4000V
Other Speics Used in High Voltage Power Supply
Previous
Next
Application: TV REMOTE CONTROLLER
Layer Count: 2 layer
Material: KB6160
Board Thickness: 1.6MM
Min Trace: 4/4MIL
Copper Thickness: 1/1 OZ
Min Hole: 0.3MM
Surface Treatment: OSP+Carbon Ink
Board Size: 146mm*34.5mm
Panel Size: 146mm*172.5mm/5pcs
Solder Mask: Green Solder Mask
Previous
Next
Application: Automotive Turbocharging Controller
Layer Count: 4 Layer
Material: FR4 TG170
Board Thickness: 1.6MM
Min Trace: 8/8mil
Min Hole: 0.25mm
Surface Treatment: Immersion Gold 2u’
Board Size: 112mm*60mm
Panel Size: 122mm*120mm/2pcs
Solder Mask: Matte Black
Previous
Next
Application: Industrial Control Main Board
Layer Count: 10 Layer TG170
Material: S1000-2M
Board Thickness: 1.6MM
Min Trace: 3/3mil
Copper Thickness: Inner layer H OZ, Out layer 1.5oz
Min Hole: 0.2MM
Surface Treatment: Immersion Gold
Board Size: 203MM*104MM
Panel Size: 203MM*114MM/1PCS
Solder Mask: Blue Solder Mask
MZH Electronics
Special product cases
Previous
Next
Goldfinger PCB’s special craftsmanship：
- Number of layers: 12-layer 2-stage HDI board (2+N+2)
- Resin filled in via and capped
- Electric gold finger (gold thickness 32U’)
Previous
Next
Step PCB’s special craftsmanship：
Multi-material mixed pressing, this board is made of S1000-2 and RO4003 materials
HDI blind buried hole process
1st to 3rd layer with steps; 1st to 5th layer with steps; 5th to 6th layer with steps.
1st to 6th layer’s shape is mostly metal-wrapped
1st to 3rd layer’s step shape needs metal-wrapped
Resin filled in via process
Previous
Next
Planar transformer heavy copper plate’s special craftsmanship：
- Number of layers: high-layer board, up to 14 layers
- Thick copper: 4OZ
- Board thickness: 6.0MM
Previous
Next
Planar transformer heavy copper plate’s special craftsmanship：
- Number of layers: high-layer board, up to 14 layers
- Thick copper: 4OZ
- Board thickness: 3.0MM
MZH Electronics

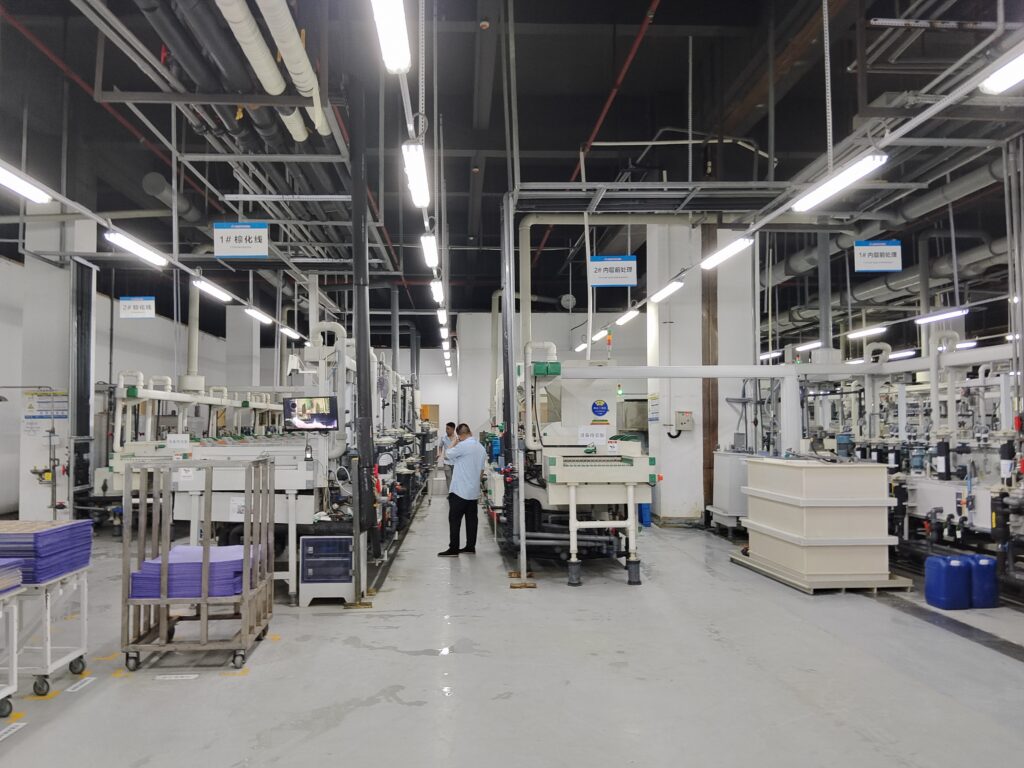

Standardized workshop
MZH Electronics
Guarantee for your product
Standardized production processes and efficient machines guarantee product quality
Having reliable technology and a mature research and development team
Nice to work with you!
MZH Electronics
Introduce Our Projects
Able to meet the needs of different industries, we focus more on providing customized PCB solutions to ensure quality and reliability.
MZH Electronics
Application areas served
Automotive
These include door buttons, panel switches, central controls, seat adjustment buttons, modules, steering wheel buttons, etc.
Industrial Control
This includes motherboards, input/output modules, communication modules, actuators, and control and monitoring electronic components.
Optical Module
Optical module circuit board, package module and connector. At the same time, our pcb also supports other modules such as optical laser diodes or laser diodes.
Consumer Electronics
Consumer electronics products include motherboards, display control boards, and input/output interface boards in smartphones, TVs, and speakers.
Get your best PCB solution fast now!
