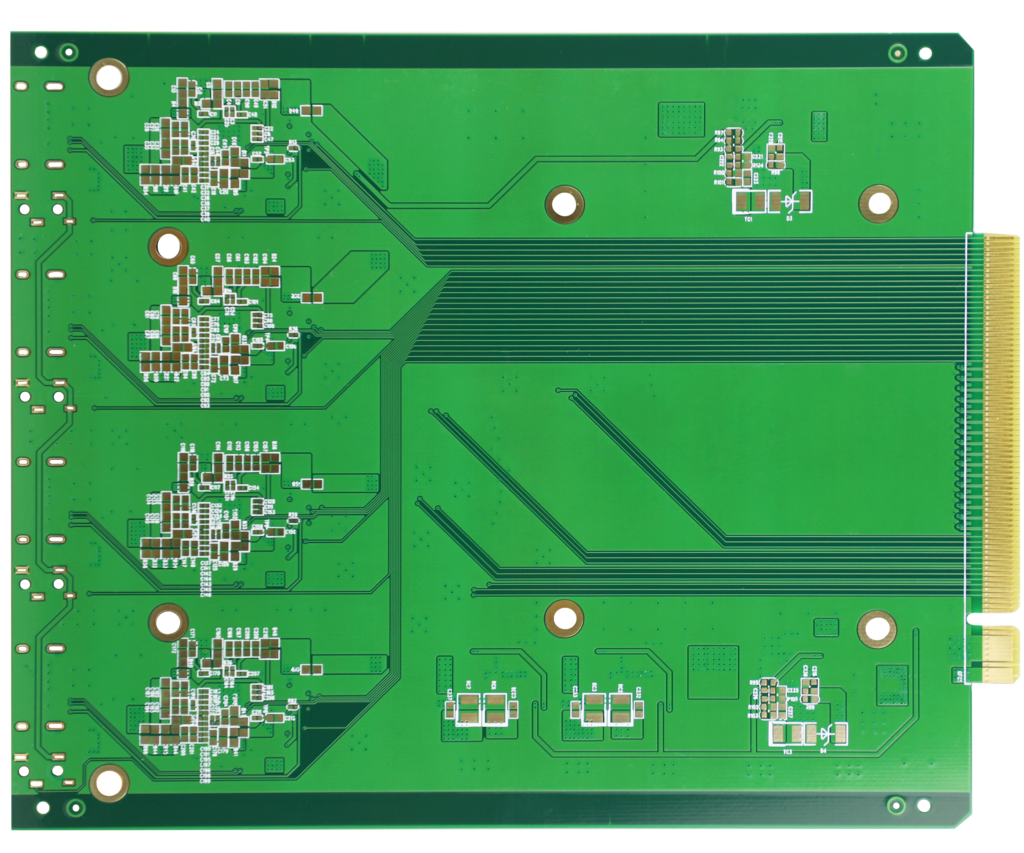

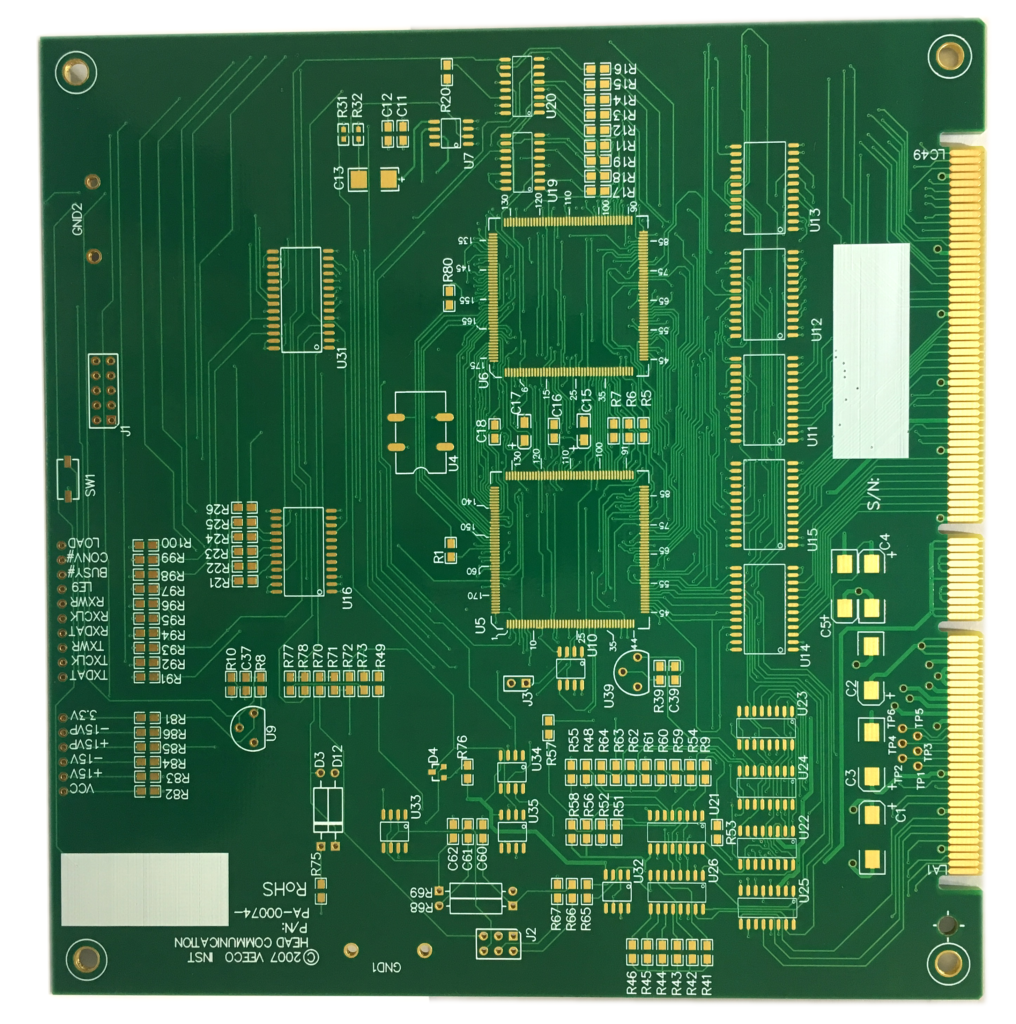

Gold Finger PCB is a circuit board specially designed for connector sockets for connecting other electronic devices or electronic cards. They are typically used in high-density connection applications such as computer motherboards, graphics cards, memory modules, and other devices that require reliable connections.
Related parameters and characteristics:
Connection Areas: The distinguishing feature of a Gold Finger PCB is its connection areas, which are covered with metal, usually gold. These metal connection areas are usually finger-like in shape to ensure a reliable connection.
Material selection: PCB materials are usually selected with higher conductivity and stability to ensure the reliability of metal connections.
Surface Treatment: Gold Finger Metal connection areas on PCBs are typically gold plated to provide excellent electrical performance and corrosion resistance.
Interface type: Gold Finger PCBs can have different interface types, including PCI, PCIe, DIMM, etc., to adapt to different application needs.
Protective measures: Metal connection areas are usually protected to avoid oxidation or contamination and to maintain connection performance.
Size and Shape: Gold Finger PCB sizes and shapes can be customized to meet the needs of specific applications.
If necessary, you can click to view more of our cases.
Gold Finger PCB Manufacturing Process：
Design: First, design the circuit board, especially the connection area.
Raw material selection: Choose high-quality fiberglass sheets and metal materials.
Printing: Manufacturing of printed circuits for circuit boards, including the design and fabrication of metal connection areas.
Gold Plating: Metal connection areas are often gold plated to provide good electrical conductivity and corrosion protection.
Assembly: Installing other electronic components and components to complete the circuit board fabrication.
Testing: The Gold Finger PCB is electrically and connectivity tested to ensure its performance and reliability.
Why choose us:
Competitive Pricing: With more than a decade of experience in the PCB industry, we have established a reliable supply chain that ensures quality components at competitive prices. For complex projects requiring unique materials or advanced technical specifications, our strong manufacturing capabilities enable us to provide cost-effective solutions while maintaining high quality.
Fast and reliable delivery: We ensure fast production and delivery. Our partnership with multiple global logistics providers guarantees timely and reliable transportation, supported by our digital factory management and 90% automation for greater efficiency.
Quality Assurance: Our rigorous quality inspection begins with incoming material checks. We use AOI to detect defects and X-rays to identify internal issues. Electrical performance testing is performed with advanced automatic test machines and flying probe testers. Before shipment, our dedicated QC team conducts a thorough manual visual inspection to ensure all products meet strict quality standards.
We have many international certifications:
We also hold several international quality certifications:
●IATF 16949:2016
●ISO 9001:2015
●ISO 45001:2018
●UL
At the same time, we are always committed to environmental protection. We have an environmental management system certification to ensure that our manufacturing process is environmentally friendly and sustainable.
Application areas
